三维立体全自动数控弯管机25CNC-4A-1S

三维立体全自动数控弯管机25CNC-4A-1S

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

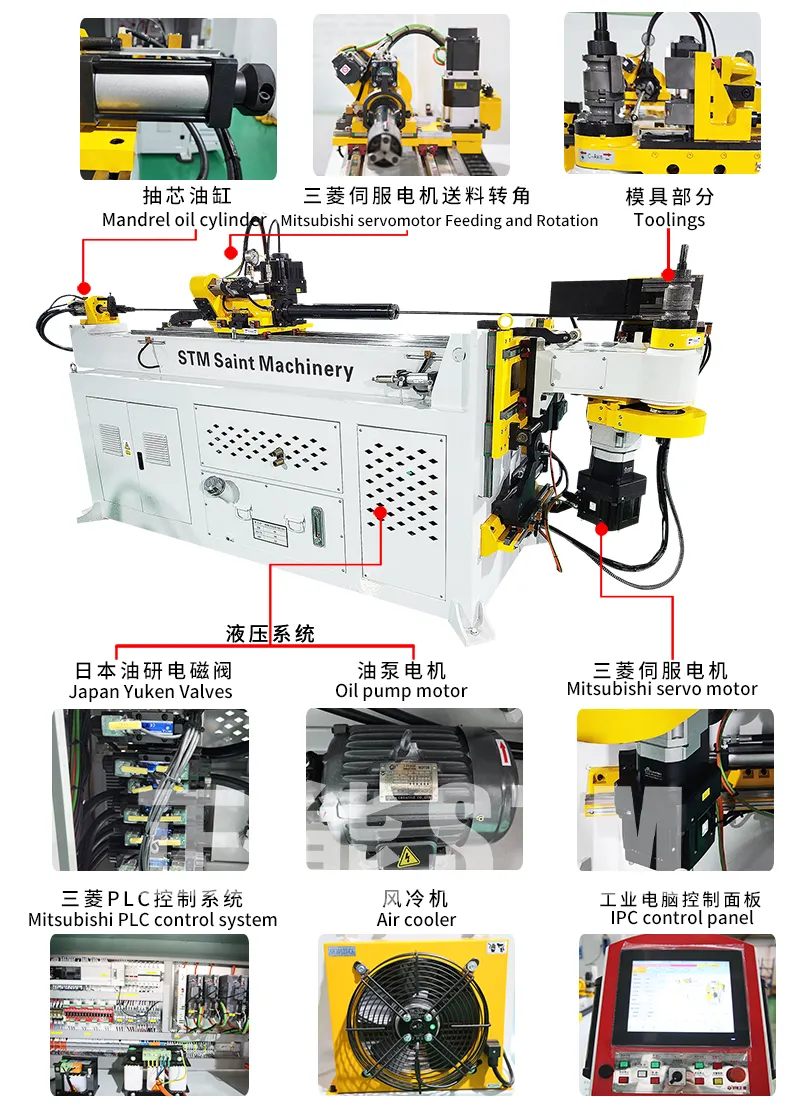

功能介绍
  1.   Bend-arm (C-axis) by servo motor
    2.   Clamp die by hydraulic
    3.   Pressure die by hydraulic
    4.   Carriage (Y-axis) by servo motor
    5.   With rear booster driven by servo motor
    6.   Collet (B-axis): rotation by servo motor, grip by hydraulic
    7.   Tooling shift : motion up-down by hydraulic, left-right by Servo motor.
    8.   Automatic mandrel lubrication
    9.   Anticipated mandrel retraction unit
    10.   Standing pedestal, serves emergency stop and remote control
    11.   Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention.
参数规格
项目 STB-25CNC-2A STB-25CNC-4A-1S
弯曲能力OD×WT(碳钢) Φ25.4× 1.6mm Φ25.4× 1.6mm
弯曲半径 18~150 mm 18~160 mm
弯曲角度 0~195° 0~195°
标准有效穿芯距离(可加长) 2000mm 2000mm
弯曲速度 150°/sec 150°/sec
弯曲精度 ±0.1° ±0.1°
送料速度 20~900 mm/sec 20~900 mm/sec
送料速度 ±0.1 mm ±0.1 mm
转速 360°/sec 320°/sec
旋转精度 ±0.1° ±0.1°
机床变速系统 --- 上下(液压)
左右(伺服)
主电机功率 4 KW 4 KW
压力 12MPa 12MPa
尺寸 3850×1150×1300mm 3900×1200×1300mm
重量 2200 kg 2300 kg
